2. Create a Schema

A schema in Workbench represents a database that stores tables and data in those tables. Schemas are very important, without them, you don't have a place to put data. This section walks you through how to create a new schema.

Before you continue

Make sure you've created a connection and it's opened right now. Refer to Create a connection.

Steps

  1. Locate the Schemas panel on the left side of the Workbench.

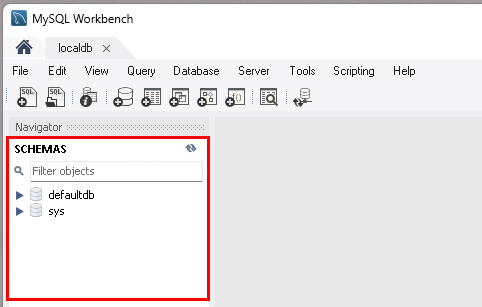

    Schema panel showing all available schemas

  2. Left-click the Create Schema button highlighted in red.

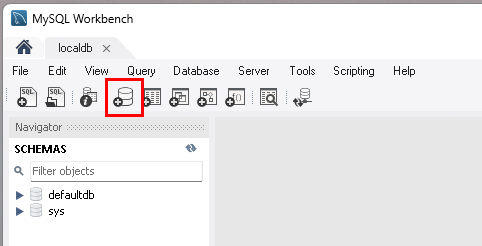

    Create schema button in the schema navigation bar

  3. Type a name for your schema in the Name box.

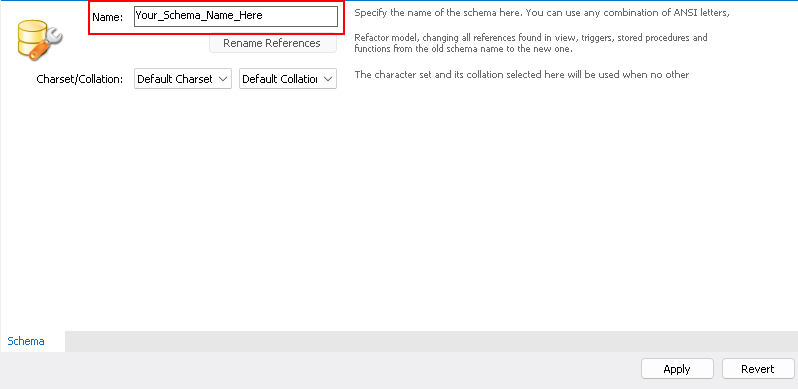

    Enter schema name field

  4. Left-click the Apply button.

  5. Read the confirmation window showing the SQL command that will be executed.

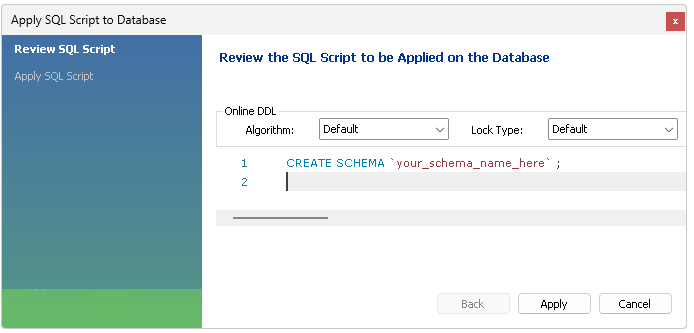

    Confirmation window showing that the command was executed

    Do you see the line of code that says CREATE SCHEMA? That is the SQL script that was automatically generated by Workbench when you clicked Apply. This is important because changes to your database won't happen until that code runs.

  6. Left-click the Apply button to run the SQL script's code.

    Success

    If the SQL script runs correctly, you'll see this:

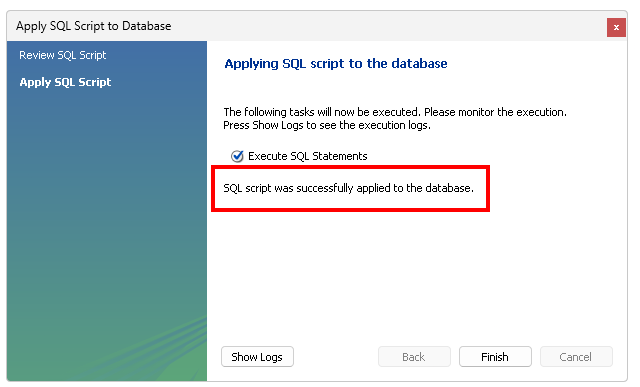

    Confirmation window with the finish button

  7. Left-click the Finish button.

  8. Left-click the Refresh button circled in red if you don't see your new schema in the Schemas panel.

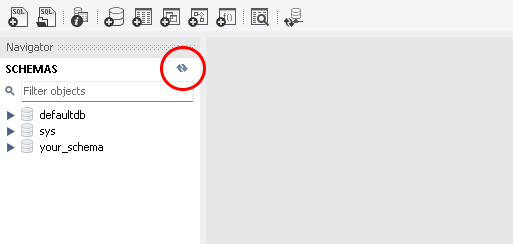

    Refresh button circled in red

    Success

    You just created a schema, you can view it in the Schemas panel. Good job 👏

Next Steps

Now that you have a schema, we're gonna create a table inside it.
