1. Create a Connection

Before creating schemas, tables, or queries in Workbench, you need to connect to an SQL Server with a connection. This part shows how to create a new connection in Workbench.

Steps

  1. Open MySQL Workbench.

  2. Left-click the + icon next to MySQL Connections on the home screen.

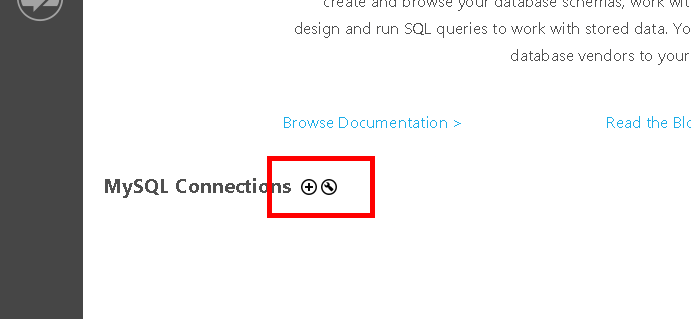

    Add Connection (+) button beside MySQL Connections on the MySQL Workbench home screen

    A window titled "Setup New Connection" should appear.

  3. Type the following details into the New Connection window:

    • A name (of your choosing) in Connection Name
    • localhost in Hostname
    • 3306 in Port
    • root in Username

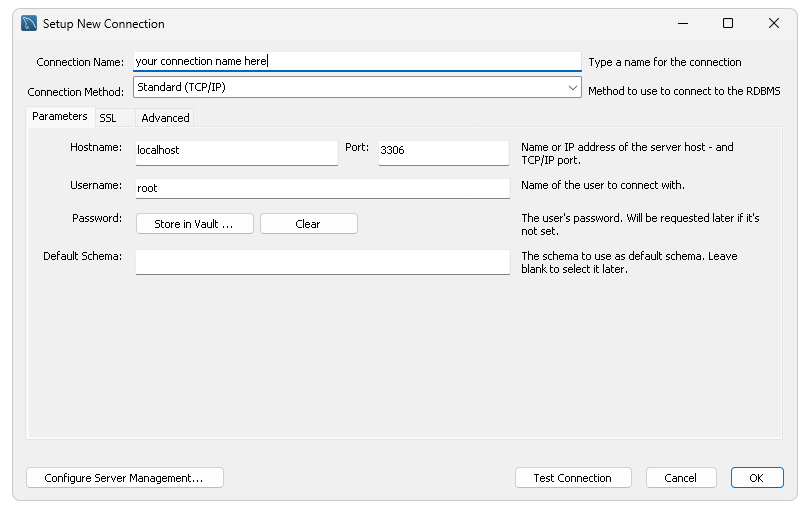

    Setup New Connection window showing the Connection Name, Hostname, Port, and Username fields

    Incorrect username?

    If root doesn't work for username, check the username you created when you installed MySQL Server, and use that instead of root. The username is usually root by default unless you set a different username during setup.

  4. Left-click the Test Connection button to verify the connection is working. If prompted, enter your MySQL password.

    Success

    If the connection settings are correct, you'll see a successful connection message. Good job 👍

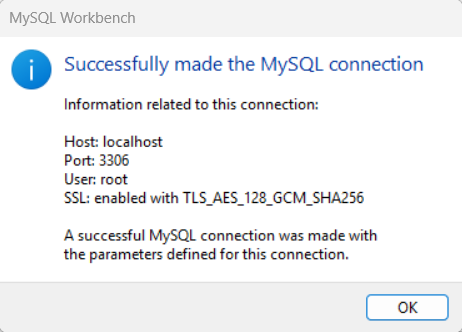

    Successful connection message shown after testing the MySQL Workbench connection

    Test connection failed?

    Double-check your password, hostname, and port number (3306) to make sure you have no typos. Most connection issues are caused by incorrect login details.

  5. Left-click OK to save the connection.

    Warning

    Before you continue to the next part, you should left-click on your connection (the box highlighted in red) to open it.

    Saved connection tile on the MySQL Workbench home screen highlighted in red

Next Steps

You've created a connection in Workbench that you can use to access your MySQL server, next, we're gonna use this connection to create a schema.
